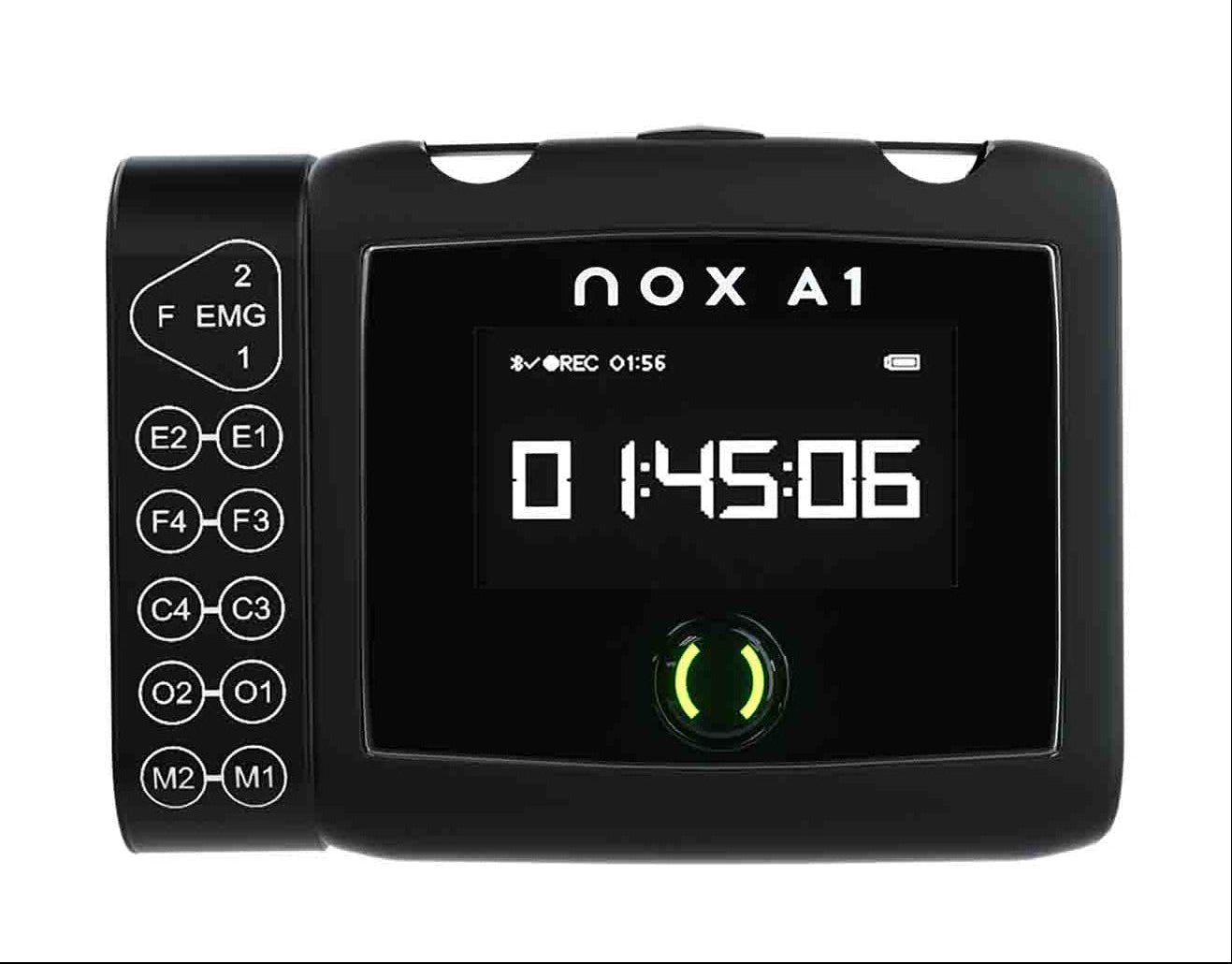

Nox A1s HST System Ambulatory Sleep Monitor

System includes*:

• Nox A1s Recorder
• NX554022 Nox Snap On Touchproof Lead - 100cm (40in), Green - 1 per pack
• NX554027 Nox Snap On Touchproof Lead - 100cm (40in), Beige/Black - 2 per pack (M1, M2)
• NX554028 Nox Snap On Touchproof Lead - 100cm (40in), Orange - 2 per pack (C4)
• NX554025 Nox Snap On Touchproof Lead - 100cm (40in), Beige/Grey - 2 per pack (E1,E2)
• NX554311 Nox Dual Snap On Keyhole - 30/50cm (12/20in), Beige-Orange (ECG)
• NX554312 Nox Dual Snap On Keyhole - 148/150cm (58/60in), Grey (PLM)
• NX562010 Nox Abdomen Cable
• NX551030 Nox Disposable RIP Belts - Medium - 2 sets
• NX552010 Nox Cannula with Filter - 2 units
• NX562010 Nox USB Cable
• NX568010 Nox T3+ Carry Case
• NX541012 Nonin WristOx2TM - Model 3150BLE
• NX553020 Nonin WristOx2 Soft Sensor - Medium
• NX564042 Nonin SPO2 3150 Wrist Band
• NX539010 Noxturnal T3 CD
• NX910008 CD-ROM of the Operators Manual
• Lithium AA Battery - 2 units
• Lithium AAA Battery - 2 units

*exact configuration can be tailored to the customer requirements

Signal Specifications

• Available Signals - Thorax and Abdomen RIP, Nasal pressure/Mask pressure, Snore Signal, Audio and snoring channel, 13 unipolar channels, 4 bipolar channels, Position, Activity, Sp02, pulse, plethysmography, and more.
• Bipolar Channels - 4x Bipolar Channels Keyhole connector, ±1024mV input range, < 3 μVrms noise, 512 kHz sampling rate, 24-bit ADC
• Unipolar Channels - 13x Unipolar Channels – Touch proof connector DIN 42-802, ±3.2mV input range < 1 μVrms noise, 512 kHz sampling rate
• Flow/Pressure Signal - 2x RIP Channels Thorax and abdomen respiratory inductance plethysmography, 200 Hz Sampling, 1x Flow/Pressure Channel -5cmH20 to +50cmH2O input pressure range, DC-80 Hz, <1 mmH2O noise
• Activity/Position Signals - Internal 3 axis, ±2 g
• Sound Signals - 1MHz sampling, internal 8 kHz bandwidth
• Wireless Interface - Bluetooth® V5.0 BLE wireless interface for external devices
• Ambient Light - 1 Hz

Performance Specifications

• Storage Capacity - 4 GB
• Recording Time - 20-30 hours with new lithium battery
• PC Communications - USB 2.0 hi-speed

Physical Specifications

• Power Source - One 1.5VAA battery during recording; Host PC USB during data download
• Battery Type - Nickel-metal hydride rechargeable (NiMH), lithium and alkaline
• Battery Cover - Tamper proof and locked
• Device Dimensions - 82mm W x 62mm H x 26mm D (3.2in W x 2.44in H x 1.02in D)
• Weight - 92g (120g with battery)
• Display - OLED-dimensions 19 x 35 mm (0.75 x 1.38 in), resolution 128 x 64 dots
• USB Connection - USB Type C

Software

• Minimum PC Requirements - Windows 10 and higher
• Processor - X64 based Intel or AMD, 1.7 GHz or faster
• Memory - 2GB RAM, 4 GB of free disk space
• Resolution - 1024 x 768 or higher
