GRANTS AND QUOTE PREPARATION RESOURCES FOR WEARABLES TOOLKIT
What You'll Find in this Toolkit
Here, we have compiled information related to Ametris products and services, including ActiGraph brand wearable devices, that are commonly requested in applications for grant funding from various public and private institutions. This toolkit is designed to facilitate the application submission process by gathering this information in one place for quick and convenient access. We hope this resource helps to support the important research that actigraphy and wearable have contributed to over the last several decades.
STEP 1: CHOOSE YOUR DEVICE
To validate that Ametris’ DHT solution is the right fit for your study, we offer an evaluation program to allow for usability testing and the collection of pilot data. If you are interested in purchasing one of these pilot packages to help prepare for your grant application, please contact us at info@templehealthcare.com.au
Device Specifications (No Accessories Included)
Ametris’ suite of ActiGraph medical-grade wearable devices is designed and optimized for use in scientific research and clinical trials, including the ActiGraph LEAP®, CentrePoint® Insight Watch, and ActiGraph wGT3x-BT®.
Visit our Wearable Devices webpage for a more detailed comparison table, and to view more detailed Specifications and Measurements for each device.

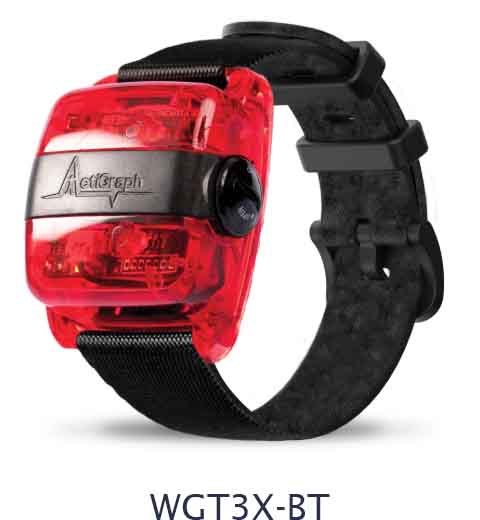

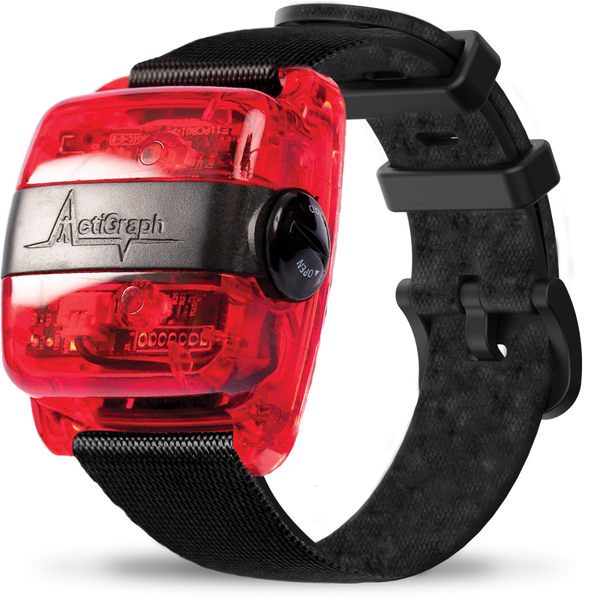

ActiGraph
wGT3X-BT®
Dimensions
4.6 x 3.3 x 1.5 cm
Weight
19 grams
Battery Life
25 days¹
Data Storage
180 Days / 4 GB
Sample Rate
30-100 Hertz
Wear Location
Wrist, Hip, Lumbar
Primary Accelerometer
+/- 8G
Ambient Light Sensor
Yes
Barometer
-
IMU Gyroscope
-
Microphone
-
PPG
-
Skin Temperature
-
Event Marker
-
Communication
USB, Bluetooth® LE 5
Software Compatible
CentrePoint, ActiLife
Display Screen
-
Water Resistance
IPX7 (1 meter, 30 minutes)
────────────────────────
Accelerometer-Based
IMU Gyroscope
-
-
-
-
-
-
-
TST, SE, WASO, SOL,
Fragmentation Index
-
-

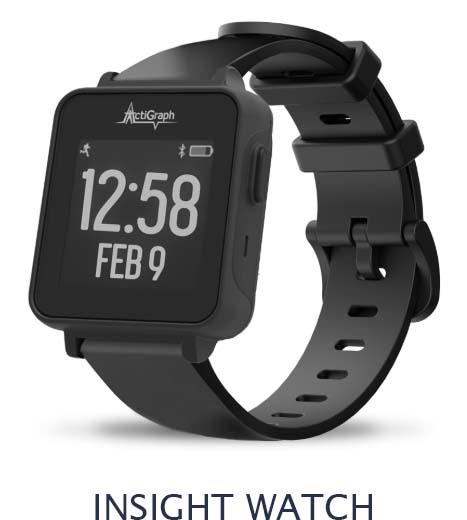

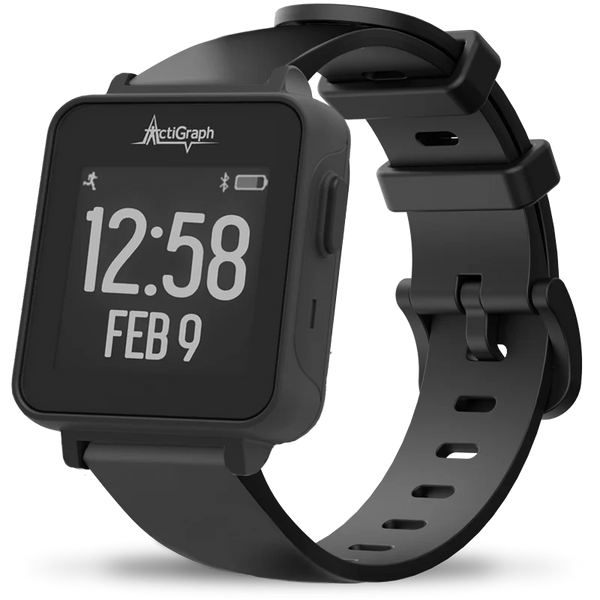

CentrePoint®
Insight Watch
Dimensions
5 x 3.43 x 1.04 cm
Weight
19 grams
Battery Life
30 days¹
Data Storage
30 Days / 512 MB
Sample Rate
32-256 Hertz
Wear Location
Wrist
Primary Accelerometer
+/- 8G
Ambient Light Sensor
-
Barometer
-
IMU Gyroscope
-
Microphone
-
PPG
-
Skin Temperature
Near Body
Event Marker
Yes
Communication
USB, Bluetooth® LE 5
Software Compatible
CentrePoint, ActiLife⁴
Display Screen
LCD
Water Resistance
IPX7 (1 meter, 30 minutes)
────────────────────────
Accelerometer-Based
IMU Gyroscope
-
-
-
-
-
-
Gait Speed¹
TST, SE, WASO, SOL,
Fragmentation Index
-
-

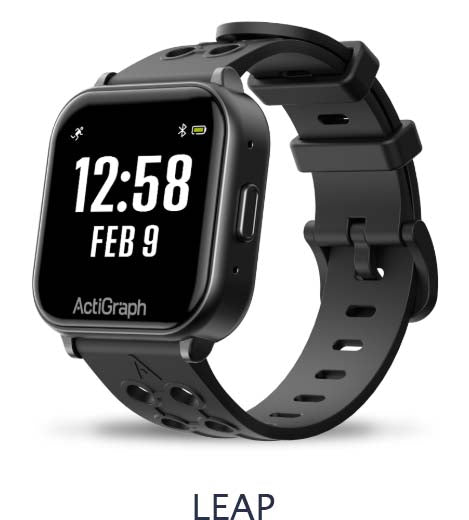

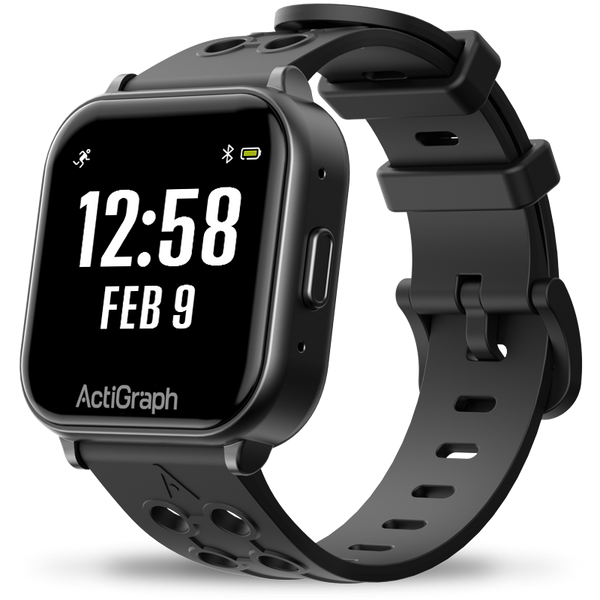

ActiGraph Leap®
Core
Dimensions
3.85 x 3.9 x 1.225 cm
Weight
24 grams
Battery Life
32 days¹
Data Storage
79 Days / 1 GB
Sample Rate
32-256 Hertz
Wear Location
Wrist, Upper Arm, Hip,
Lumbar, Ankle
Primary Accelerometer
+/- 8G
Ambient Light Sensor
-
Barometer
300 to 1100 hPa
(~ ~500m to 9000m)
IMU Gyroscope
+/- 2000 dps
Microphone
100Hz to 10kHz³
PPG
Green (530nm)
Red (655nm)
IR(940nm) LEDs
Skin Temperature
-20C to 50Cz
Event Marker
Yes
Communication
USB, Bluetooth® LE 5
Software Compatible
CentrePoint, ActiLife
Display Screen
LCD - Touch Screen
240 x 240 Pixels
Water Resistance
IPX7 (1 meter, 30 minutes)
────────────────────────
Accelerometer-Based
IMU Gyroscope
-
-
-
-
-
-
-
-
-
-
ActiGraph Leap®
Pro
Dimensions
3.85 x 3.9 x 1.225 cm
Weight
24 grams
Battery Life
32 days¹
Data Storage
79 Days / 1 GB
Sample Rate
32-256 Hertz
Wear Location
Wrist, Upper Arm, Hip,
Lumbar, Ankle
Primary Accelerometer
+/- 8G
Ambient Light Sensor
-
Barometer
300 to 1100 hPa
(~ ~500m to 9000m)
IMU Gyroscope
+/- 2000 dps
Microphone
100Hz to 10kHz³
PPG
Green (530nm)
Red (655nm)
IR(940nm) LEDs
Skin Temperature
-20C to 50Cz
Event Marker
Yes
Communication
USB, Bluetooth® LE 5
Software Compatible
CentrePoint, ActiLife
Display Screen
LCD - Touch Screen
240 x 240 Pixels
Water Resistance
IPX7 (1 meter, 30 minutes)
────────────────────────
Accelerometer-Based
IMU Gyroscope
Heart Rate (HR)
Heart Rate Variability (HRV)
Interbeat Interval (IBI)
Skin Temperature
Respiratory Rate
A-Fib / Cardiac Rhythm
-
-
-
-
ActiGraph Leap®
Advanced
Dimensions
3.85 x 3.9 x 1.225 cm
Weight
24 grams
Battery Life
32 days¹
Data Storage
79 Days / 1 GB
Sample Rate
32-256 Hertz
Wear Location
Wrist, Upper Arm, Hip,
Lumbar, Ankle
Primary Accelerometer
+/- 8G
Ambient Light Sensor
-
Barometer
300 to 1100 hPa
(~ ~500m to 9000m)
IMU Gyroscope
+/- 2000 dps
Microphone
100Hz to 10kHz³
PPG
Green (530nm)
Red (655nm)
IR(940nm) LEDs
Skin Temperature
-20C to 50Cz
Event Marker
Yes
Communication
USB, Bluetooth® LE 5
Software Compatible
CentrePoint, ActiLife
Display Screen
LCD - Touch Screen
240 x 240 Pixels
Water Resistance
IPX7 (1 meter, 30 minutes)
────────────────────────
Accelerometer-Based
IMU Gyroscope
Heart Rate (HR)
Heart Rate Variability (HRV)
Interbeat Interval (IBI)
Skin Temperature
Respiratory Rate
A-Fib / Cardiac Rhythm
Gait Speed¹
REM and Non-REM Sleep¹
Gait Measures
(Mobilise-D Algorithms)¹
Mobility/Cardinal Symptoms
(PKG Health Algorithms)¹
STEP 2: CHOOSE YOUR SOFTARE
To meet the diverse needs of academia and public health researchers, Ametris offers two powerful software platforms for collecting and processing ActiGraph device data, ActiLife and CentrePoint.
ActiLife
This desktop software is the most popular option used by academic researchers. This software offers
maximum flexibility, including analysing data from an unlimited number of participants and re-analysing
data files with different parameters. ActiLife’s robust screening and analysis toolkit allows users to
process and score collected data using a comprehensive selection of independently developed and
validated algorithms.
Compatible Devices
ActiGraph LEAP,
ActiGraph wGT3X-BT
Key Features and Benefits
Streamline initializations, Subject data comparison, Batch data processing and exports, Validated algorithms, Multi-sensor data collection, Raw data analytics, Data vault storage (free up to 20GB).
Pricing Tiers / Licensing Options
SINGLE
1 Full Activation
5 Lite Activations
SMALL ENTERPRISE
5 Full Activation
10 Lite Activations
Full Activation: Allows users to initialise devices, download data, view/open data files, and analyse data.
Lite Activation: Allows users to initialise devices, download data.
Perpetual license. No renewals/expiry.

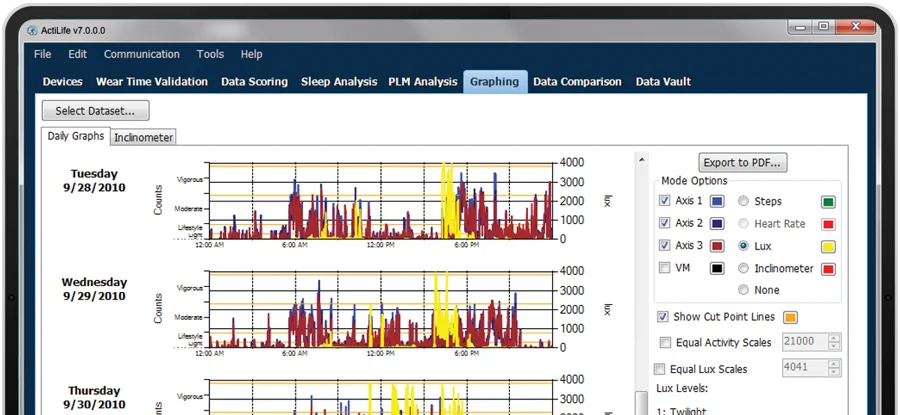

ACTILIFE®
Powerful Data Analysis Platform
ActiLife 7 is Ametris' legacy data processing software customized to power advanced analytics and optimize usability in your research studies. Capture objective, continuous data to inform measures of physical activity, sleep, and vital signs. ActiLife 7 is compatible with the ActiGraph wGT3X-BT and ActiGraph LEAP®, as well as other legacy ActiGraph device models.
All ActiLife software licenses are automatically covered by Ametris' maintenance and service program for one year from the date of purchase, which includes access to all features updates and bug fixes, and 20GB of free Data Vault storage.
The licence options available vary on size of project needs:
- Single
1 Full & 5 Lite Activations - Small Enterprise
5 Full & 10 Lite Activations - Medium Enterprise
10 Full & 15 Lite Activations - Large Enterprise
15 Full & 20 Lite Activations
Here are the minimum and recommended hardware and software requirements for ActiLife 6.x. For a comprehensive list of system requirements, visit the dedicated ActiLife System Requirements page on the Ametris websites' Support section.
