Whether it is maximum flexibility in settings or indication-specific pre-setting (SCOPES) - the prisma25ST by Löwenstein Medical offers you the right solution for your individual needs. The optionally adjustable automatic back-up frequency provides additional security.
- BiLevel S and ST therapy modes
- Automatic backup rate
- Adjustable trigger and cycle sensitivity
- Leak compensation technology
- softPAP comfort pressure relief
- Therapy data recording and reporting
- Humidifier and heated tube compatibility
BiLevel flexibility at its best
Additional pressure relief (Bi soft 1/2), automatically regulated pressure difference (autoPDIFF) and autoTriLevel ensure maximum adaptability of the therapy to the patient's needs and provide additional, secure breathing comfort.
Features that impress
The prisma25ST therapy device impresses with its intelligent BiLevel pressure profiles, the automatic or permanently set backup frequency and the integrated respiratory stability indicator prisma RECOVER. prisma RECOVER continuously evaluates the breathing pattern during therapy and identifies phases of very stable breathing that indicate deep sleep, a particularly restful phase of sleep. Even in BiLevel modes, phases of particularly stable respiration are recognised and identified. This means that, for the first time, successful therapy can also be evaluated in terms of sleep quality in prisma JOURNAL, prisma APP, prismaTS or in telemonitoring with prisma CLOUD.
Intelligent menu navigation
The menu navigation of the prisma25ST sleep therapy device is identical to the other devices in the prismaLINE. This ensures quick, easy and intuitive handling and operation.
Modern connectivity

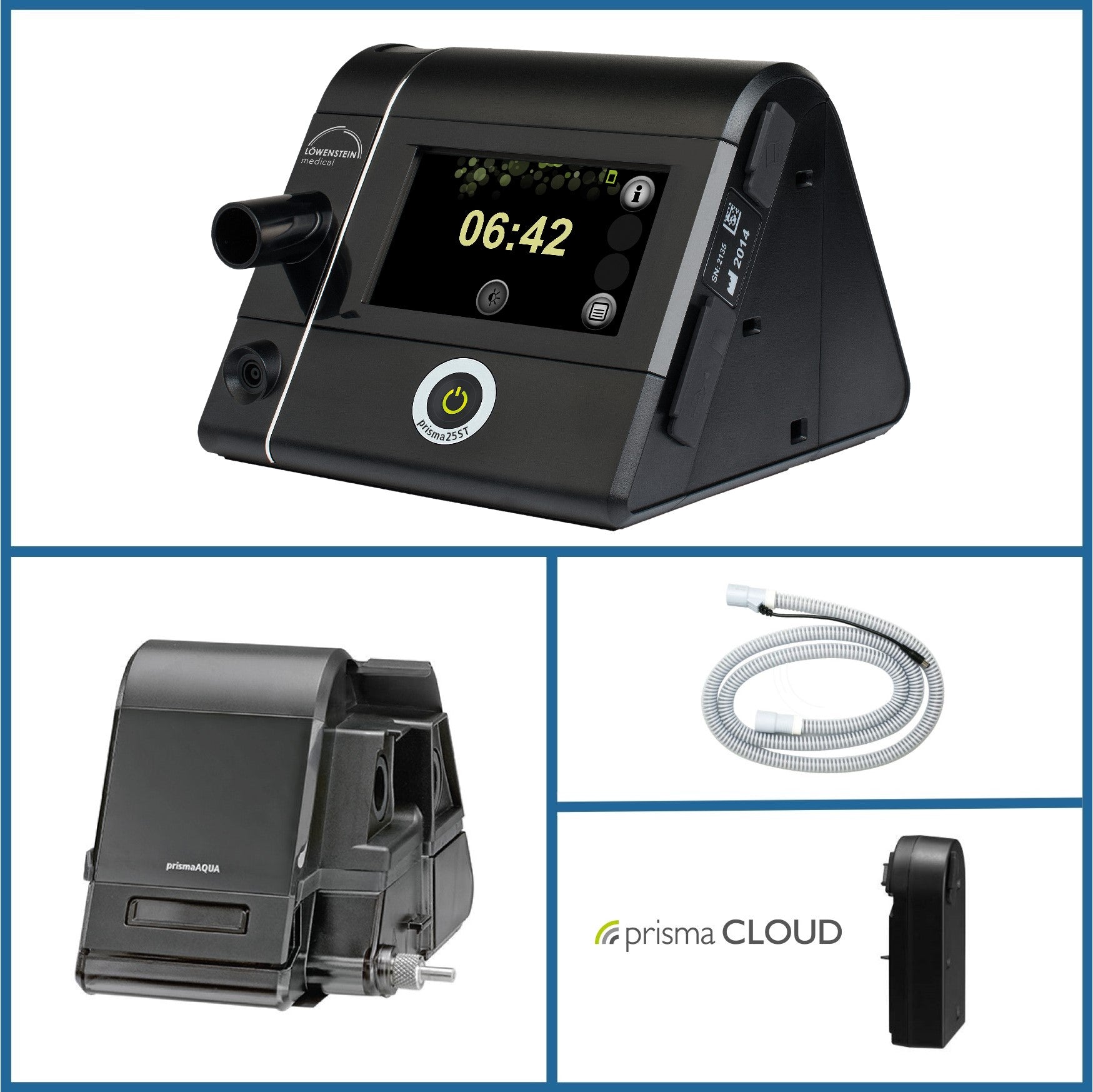

Compatible and future-proof. Various interfaces such as SD, PSG, LAN and external modem offer various options for data transfer. Our software solutions (e.g. prismaTS, prisma APP and prisma CLOUD) are available for simple, flexible and secure therapy support.
Sensorless intelligent humidification

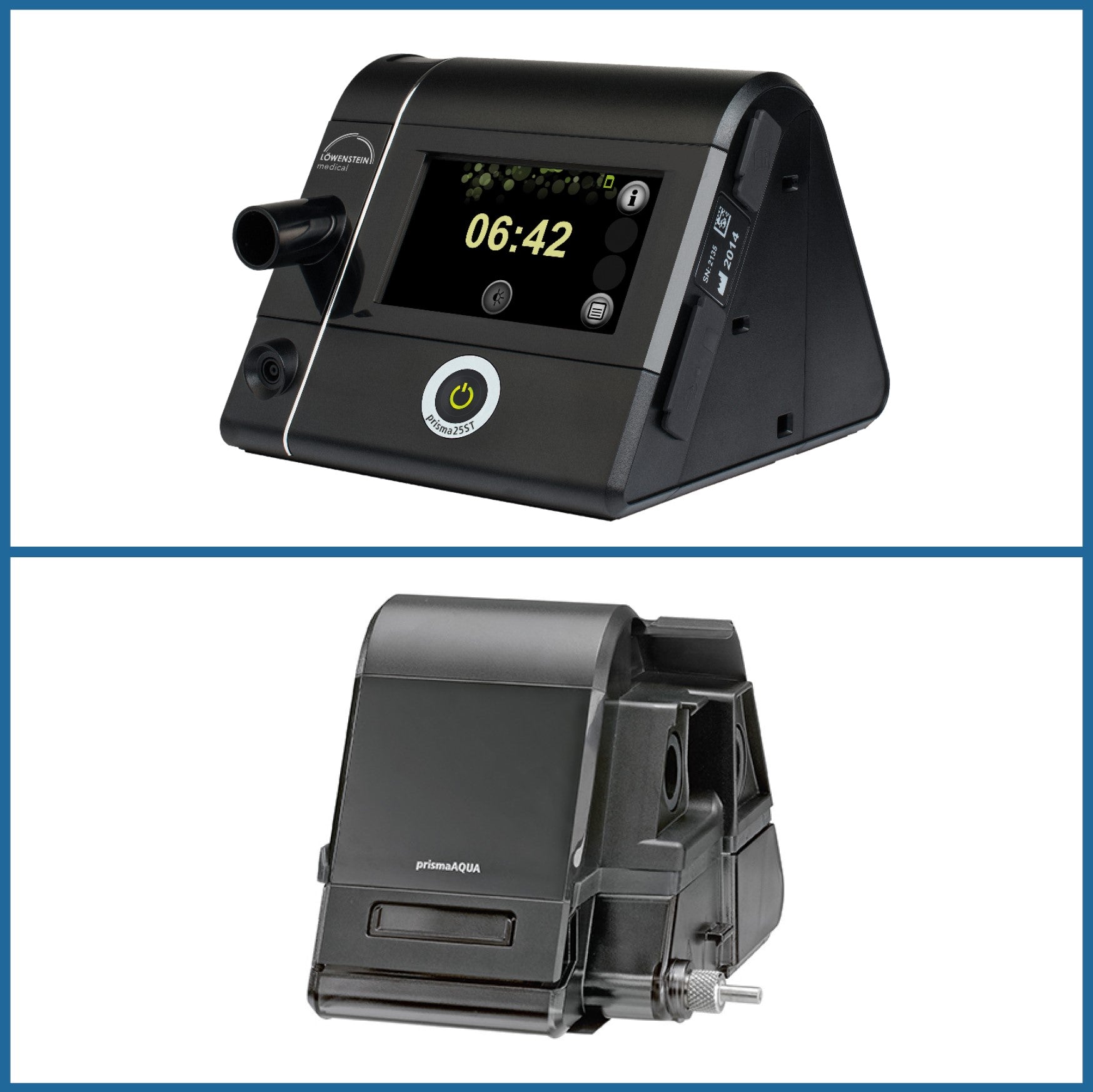

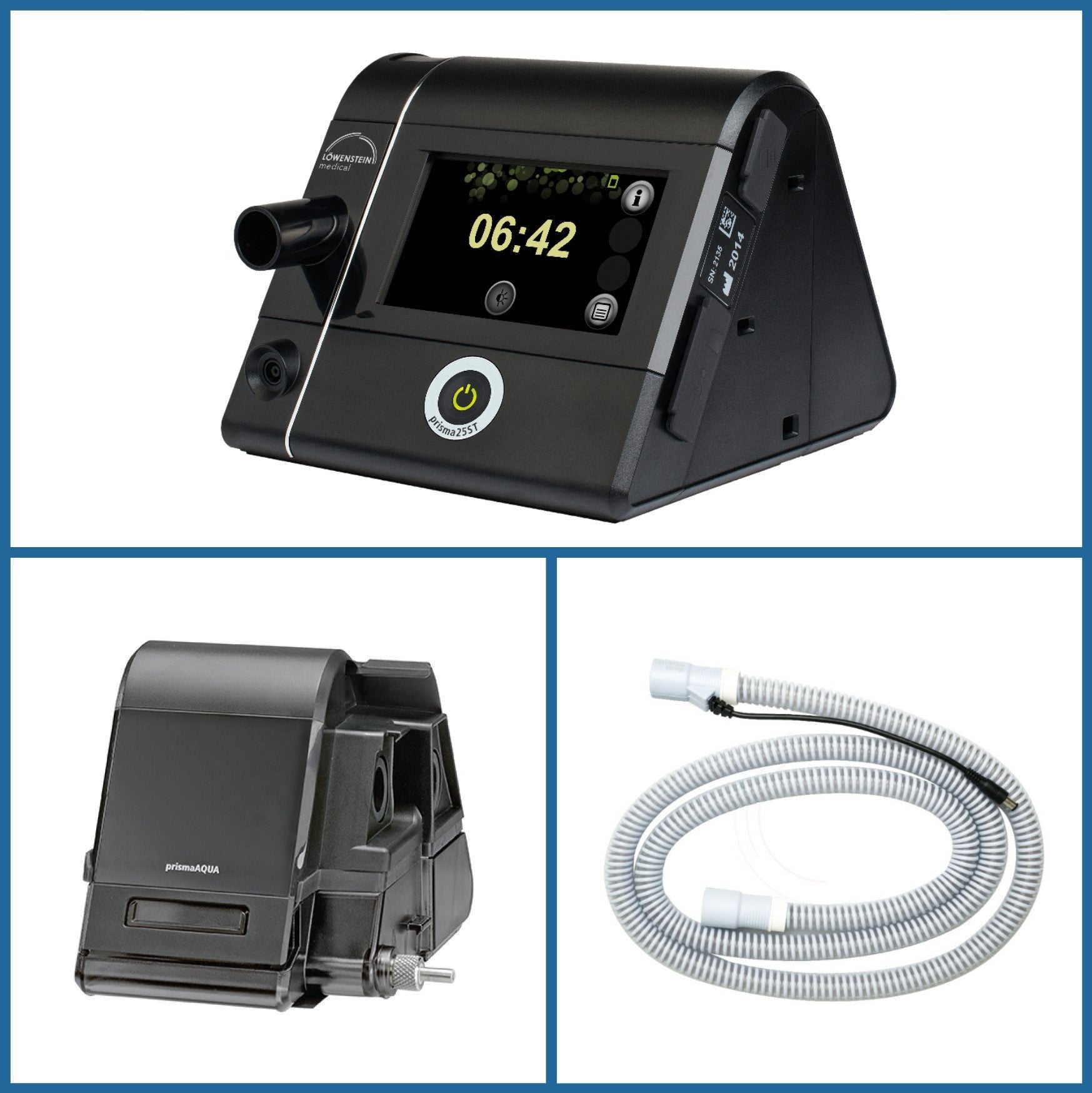

When using the prismaAQUA humidifier, smartAQUAcontrol can optionally be switched on: to quickly warm up the applied flow at the start of therapy and to ensure humidifier performance during periods of increased leakage. prismaAQUA can optionally be operated with a heated circuit.
Fall asleep comfortably - softSTART
The softSTART function can be activated to help you fall asleep and slowly acclimate to therapy pressure during the sleep phase. This ensures a slow increase in pressure over a set period until therapy pressure is reached. This is particularly useful for patients who find high pressure uncomfortable while awake and cannot fall asleep.
Pressure relief softPAP
For comfortable expiration during therapy, the pressure in CPAP and autoCPAP mode is reduced at the start of expiration and increased to therapy pressure in time for the start of the inhalation phase to facilitate exhalation as much as possible and effectively prevent events.
Pressure reaction fits patient’s needs
Patients react with varying sensitivity to pressure adjustments. For effective therapy and breathing comfort, two options for pressure adjustments are available in APAP mode. In addition, a pressure increases at closed central events is avoided.
Precise event recognition
With the help of “Forced Oscillation Technique” (FOT) in modes without back-up frequency or with “Forced Breath Technology” (FBT) in modes with backup frequency, reliably precise differentiation is made between central and obstructive apnea. Hypopnea too is reliably differentiated and recognised, as are other events such as Cheyne-Stokes respiration, flow limitations, snoring and RERA.
